K o d a k   R e f l e x
Kodak Reflex

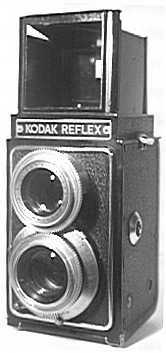

A true twin-lens reflex with most of the features to be expected from this style of camera. The taking lens is gear coupled to the finder lens and focusses down to 3.5 feet. The waistlevel viewfinder is fitted with a fine focus magnifier and can be converted to an eye-level viewfinder by rotating the front panel of the shroud inwards, as in the photo. Operation of the shutter, which is speeded from 1/2 sec to 1/200 sec, is a little unusual, in that the operating lever below the lens to the right is moved up to cock the shutter, then down to release it. Flash is provided by a recessed coaxial bayonet connector on the left-hand side.
name: Kodak Reflex
produced between : 1946 - 1949
lens : Anastigmat 80mm f/3.5
shutter : Flash Kodamatic
film type : 620
picture size : 6 x 6 cm
original list price (USD): 100.00
categories: 620
Kodak Reflex
